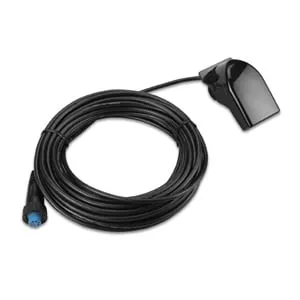

This dual beam transducer replaces the one included with your echo™ series fishfinder.

A 500 W 8-pin transducer, it has an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and mounts on a 0 to 70 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with the echo fishfinders, transducer adapter cable, 010-11947-00, is required. Transducer, 010-10249-20, is preferred.

Product highlights:

FREQUENCY	77/200 kHz
POWER	500 W
BEAMWIDTH	45°/15°
MAXIMUM DEPTH	1,900 ft.
DEPTH/SPEED/TEMPERATURE	Depth and Temperature
NUMBER OF PINS	8-pin
CABLE LENGTH	30 ft.
SUPPORTED DEADRISE/TRANSOM ANGLES	0°-70° degree transom
