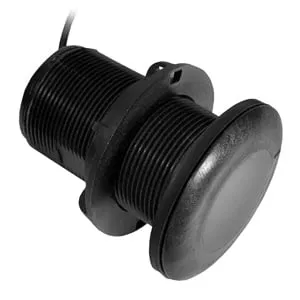

This plastic thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and metal hulls.

This 8-pin 500 W transducer has a depth of 900 ft; an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and a 8 to 15 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Do not use on wood hulls.

When using with the echo™ series fishfinders, transducer adapter cable part number 010-11947-00 is required.

Product Highlights:

FREQUENCY	77/200 kHz
POWER	300 W
BEAMWIDTH	45°/15°
MAXIMUM DEPTH	900 ft.
DEPTH/SPEED/TEMPERATURE	Depth and Temperature
NUMBER OF PINS	8-pin
CABLE LENGTH	30 ft.
SUPPORTED DEADRISE/TRANSOM ANGLES	8°-15° degree deadrise
